Conrader Valves Electronic Timer Tank Drain For Air Compressors and Compressed Air Systems

Keep your air compressor tank dry and running efficiently with our reliable electronic timer tank moisture drain made by Conrader Valves. Designed for industrial use, this timer drain removes accumulated moisture automatically—saving you time and preventing costly damage.

Key Features:

• Voltage: 110V AC, 50/60 Hz with a 6ft power cord for easy connection

• Max Working Pressure: 200 PSI

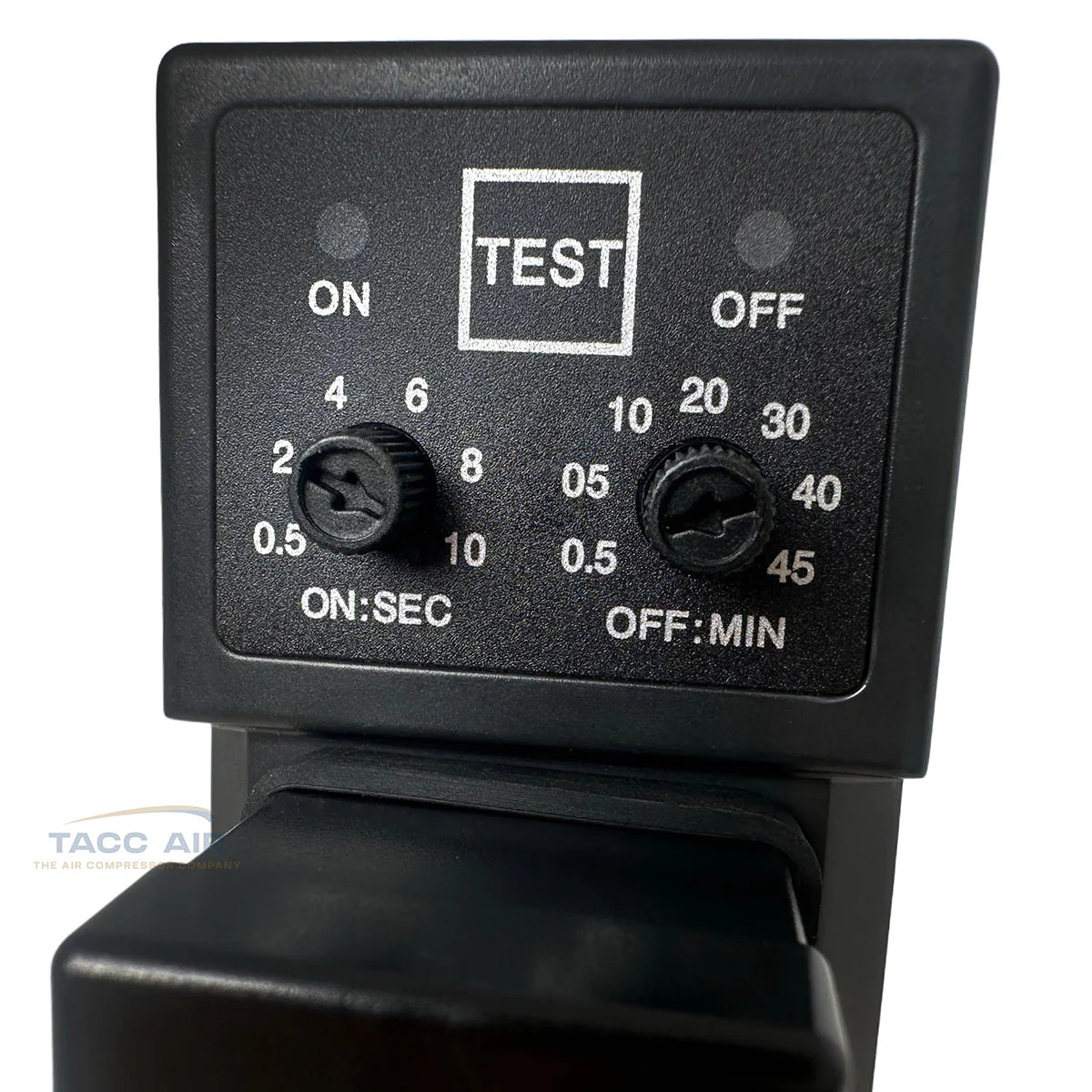

• Adjustable Drain Cycle: Automatically drains every 30 seconds up to every 45 minutes

• Drain Duration: Adjustable from 0.5 seconds to 10 seconds (most common setting: every 45 minutes for 3 seconds)

• Quality Construction: Heavy-duty coils for long-lasting reliability

• Built-in Y-Strainer: Protects main valve and solenoid from debris, ensuring clog-free operation

• Thread Sizes:

  • Inlet has 1/4" female NPT and 1/2" male NPT threads providing multiple installation options.

  • Outlet is 1/2" Female NPT. This can be reduced or adapted to with other fittings sold separately.

  • Note: (1/4" measures approx. 1/2" in diameter)

  • Note: (1/2" NPT measures approx. 3/4" in diameter)

  • The combination of options makes the drain highly versatile for many different installation applications

• Installation:

  • Typically mounted at the bottom of the tank

  • May require pipe extension for clearance, depending on tank design

  • Can be mounted remotely using air hose and fittings if needed

• Operation: Uses tank air pressure to naturally push out moisture—works efficiently whether mounted low or high

• Drain Output: Should release a fine mist during operation; if a stream of liquid is visible, increase drain duration or frequency

Why Choose Our Timer Tank Drain?

This industrial-grade electronic drain is made by Conrader Valves offers dependable moisture removal to protect your compressor system, improve air quality, and reduce maintenance downtime. Its versatile thread sizes and installation options make it ideal for a wide range of applications.
